I. Overview
SG series three-phase dry-type transformers are widely used in various three-phase power supply occasions with AC 50~60Hz and input and output voltages not exceeding 1000V. The various input and output voltage levels of the product, the connection group, the number and position of the adjustment taps (usually ±5%), the distribution of the winding capacity, the configuration of the secondary single-phase winding, the use of the rectifier circuit, and whether the belt is required. Shells, etc., can be carefully designed and manufactured according to the requirements of users; ZSG series three-phase dry-type rectifier transformers are used for rectification equipment, charging, voltage regulation and DC power supply after rectification.

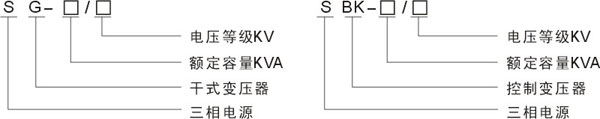

2. Model and its meaning

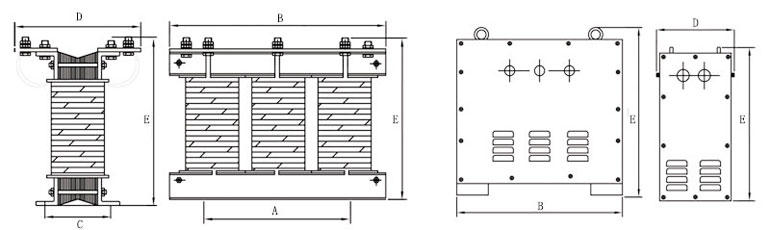

3. Appearance and installation dimensions
AKSG three-phase dry-type (servo) isolation transformer | |
Input voltage | 480V 440V 415V 400V 380V 220V can be customized |
The output voltage | 415V 380V 230V 220V 210V 200V can be customized |
Phase | three phase |
Voltage error | ±5% (optional regulated power supply) |
Voltage change rate | ≤1.5 |
working frequency | 50/60Hz |
Waveform Distortion | No distortion (compared to input waveform) |
Insulation class | Class F, high temperature resistance 150℃ |
waveform distortion | <3% |
work efficiency | Inductive (isolated line) ≥99% |
overload capacity | Allow more than 1.2 times rated load |
Pressure test | 3000V/1min |
Insulation resistance | ≥150MΩ |
noise | 35dB (within 1 meter) |
cooling method | dry cooling |
temperature rise | ≤60℃ |
Design life | 20 years |
Connection method | Y/∆ Yyno D,y11 D,do optional |
Safety standards | Products comply with international and domestic certifications such as VDE0550 IEC439 JB5555 GB226 |
Specifications | Product Size | Installation size | Package dimensions | Product Weight | unit |
AKSG-500VA | 180*125*165 | 130*180 | 8.076kg | tower | |
AKSG-1kVA | 180*153*170 | tower | |||
AKSG-1.6kVA | 230*145*210 | 155*100 | 300*200*280 | tower | |
AKSG-2kVA | 230*155*210 | 155*100 | 300*200*280 | 18.836kg | tower |
AKSG-3kVA | 260*155*235 | 175*115 | 325*205*305 | 23.856kg | tower |
AKSG-4kVA | 265*155*235 | 175*125 | 325*205*305 | 29.134kg | tower |
AKSG-5kVA | 300*195*275 | 200*130 | 370*245*350 | 38.092kg | tower |
AKSG-6kVA | 360*190*320 | 240*130 | 445*325*400 | 48.012kg | tower |
AKSG-7kVA | 360*195*330 | 47.594kg | tower | ||
AKSG-8kVA | 360*205*330 | 240*135 | 445*325*400 | 55.986kg | tower |
AKSG-10kVA | 360*215*330 | 240*145 | 445*325*400 | 60.944kg | tower |
