产品概述:The voltage at the installation point of the FSVR line automatic voltage regulator meets the requirements of the national standard GB/T12325-2008 power supply v···

产品简介

FSVR系列10kV高压在线馈电调压稳压变压器

额定容量 (kvar)

电压组合及分 接范围(kv)

联结组标号

空载损耗 (W)

负载损耗 (W)

空载电流 %

短路阻抗 (%)

重量(kg)

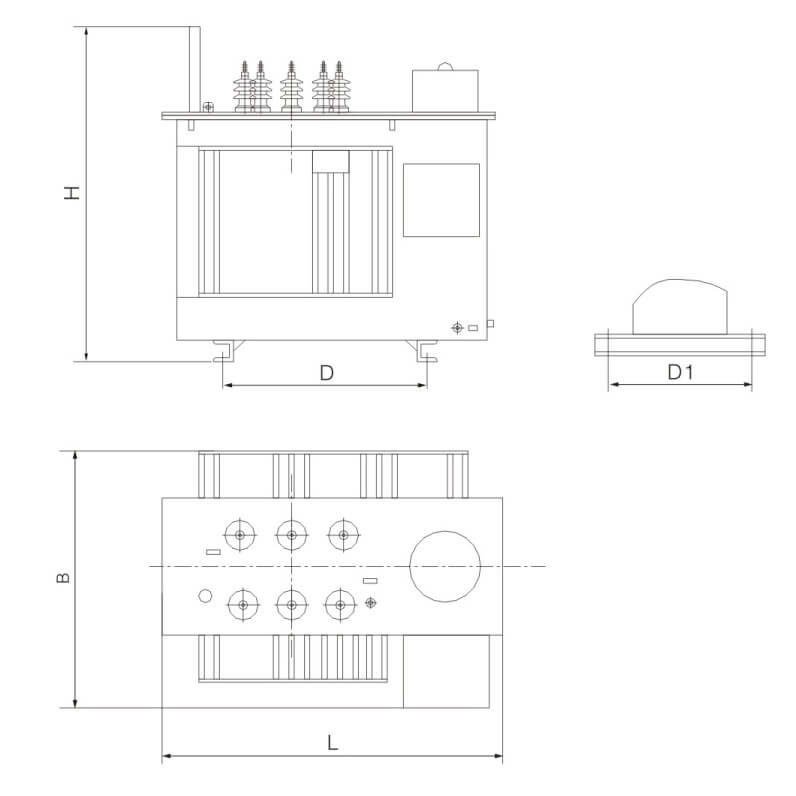

外形尺寸(mm) (长LxBxH)

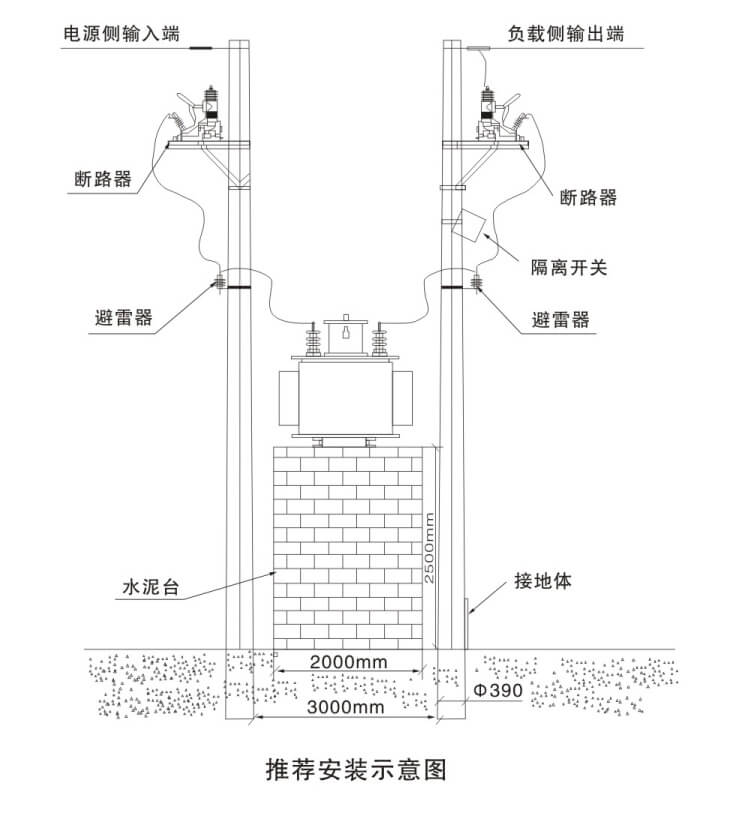

安装尺寸 (D/D1)

输入(kV)

高压分解范围%

输出(kV)

器身吊

油重

总重

630

7.0-10.5

1-7

1-9

10.0 10.5

Ya0

400

2500

1

2

600

280

1100

1200x1000x1210

550/550

800

500

2800

0.9

670

310

1210

1250x1000x1250

550/550

1000

600

3500

0.9

770

330

1320

1280x1050x1290

550/550

1250

700

4000

0.8

880

350

1500

1320x1070x1320

660/660

1600

800

5000

0.8

1000

400

1650

1400x1100x1380

660/660

2000

960

6000

0.6

1150

450

1950

1460x1160x1410

660/660

2500

1200

7000

0.6

1380

550

2320

1520x1250x1470

660/660

3150

1400

10000

0.6

1650

610

2640

1630x1250x1500

820/820

4000

1700

12000

0.5

1840

940

3300

1870x1350x1530

820/820

5000

1950

14500

0.5

2160

1100

4180

1900x1450x1620

820/820

6300

2500

16000

0.4

2600

1550

5300

1980x1450x1950

820/820

FSVR系列35kV高压在线馈电调压稳压变压器

2000

28-35
28-36.75

1-7

1-9

35

Ya0

1250

7000

0.5

3

1670

870

3160

2300x1100x1850

820/820

2500

1500

8500

0.5

1850

930

3370

2400x1100x1960

820/820

3150

1700

10000

0.5

2040

960

3680

2460x1250x2000

820/820

4000

2000

12000

0.5

2300

1000

4020

2650x1500x2050

1070/1070

5000

2400

15000

0.5

2720

1060

4580

2700x1680x2100

1070/1070

6300

3000

19000

0.5

3050

1100

5150

2750x1750x2150

1070/1070

8000

3200

21000

0.4

3340

1290

5580

2820x1900x2220

1070/1070

10000

3800

24000

0.4

3730

1520

6750

2910x2160x2310

1070/1070

12500

4500

29000

0.35

4170

1930

8180

3220x2250x2620

1070/1070

16000

5400

34000

0.35

5150

2200

9360

3340x2300x2680

1475/1475

20000

6600

38000

0.35

5850

2420

10400

3550x2360x2750

1475/1475

注:1、最大电流分接为-7.5分接位置
